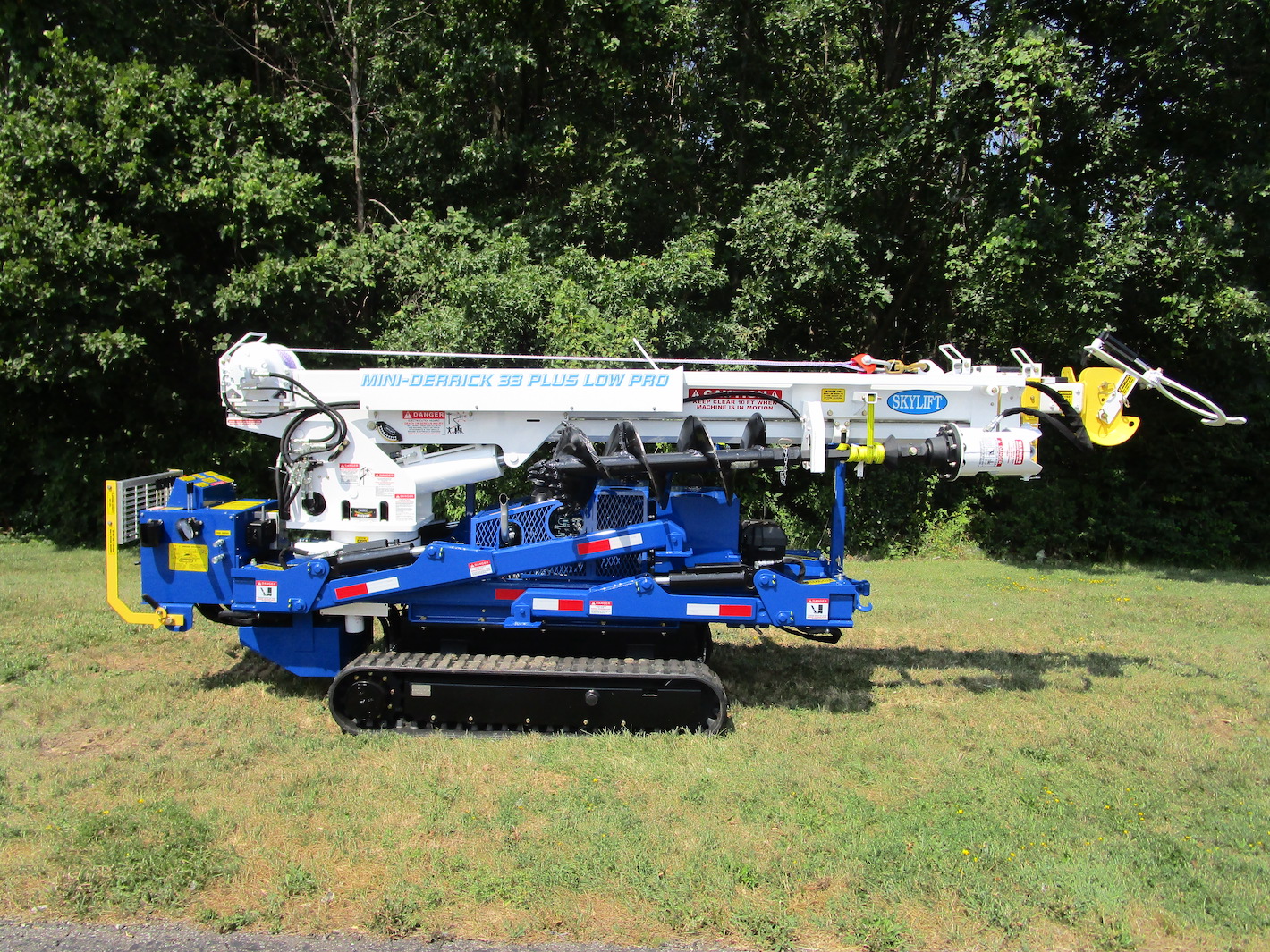

MD 4000 Plus Low Pro Track Driven

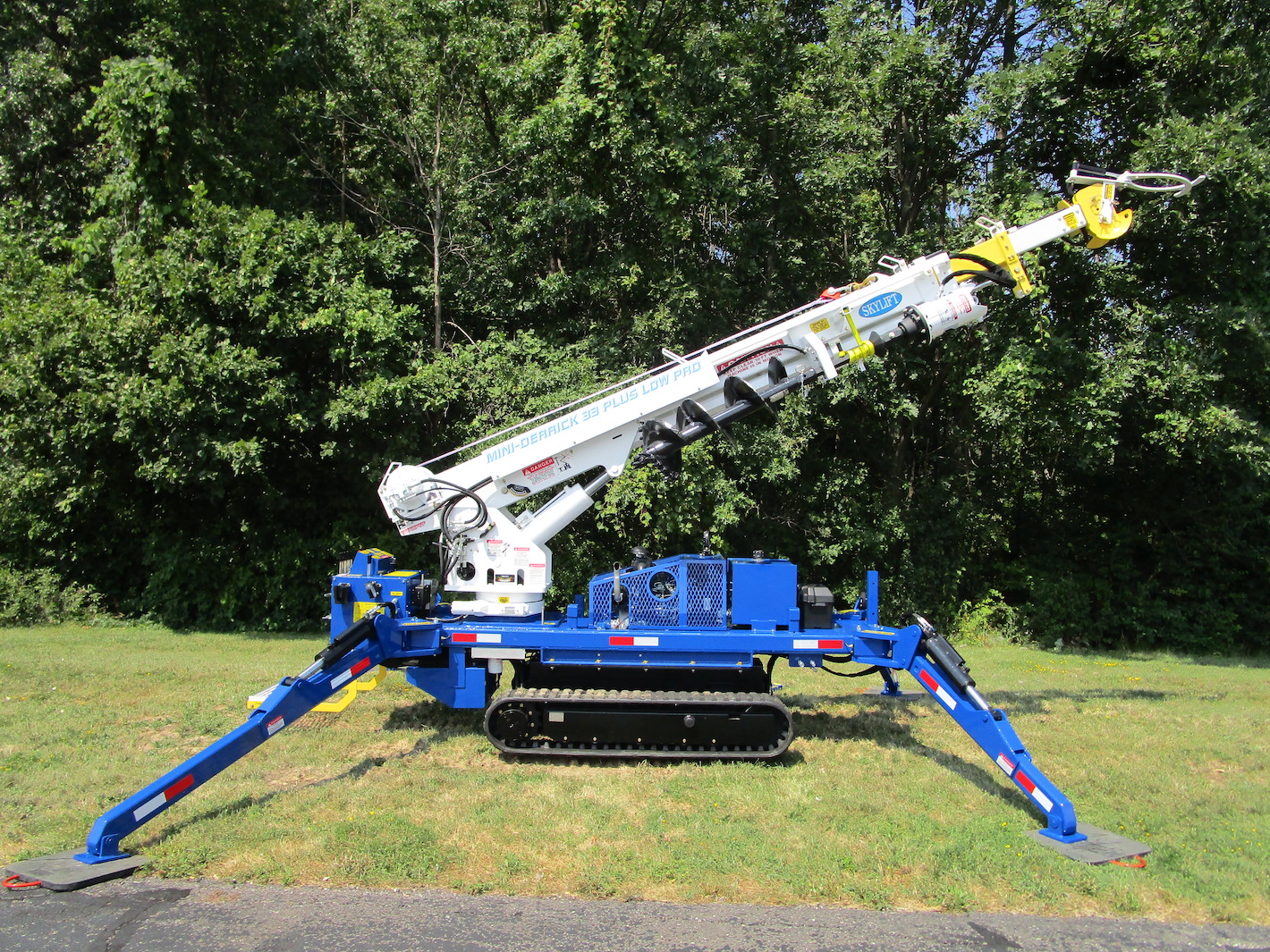

MD 4000 Plus Low Pro Track Driven Easement

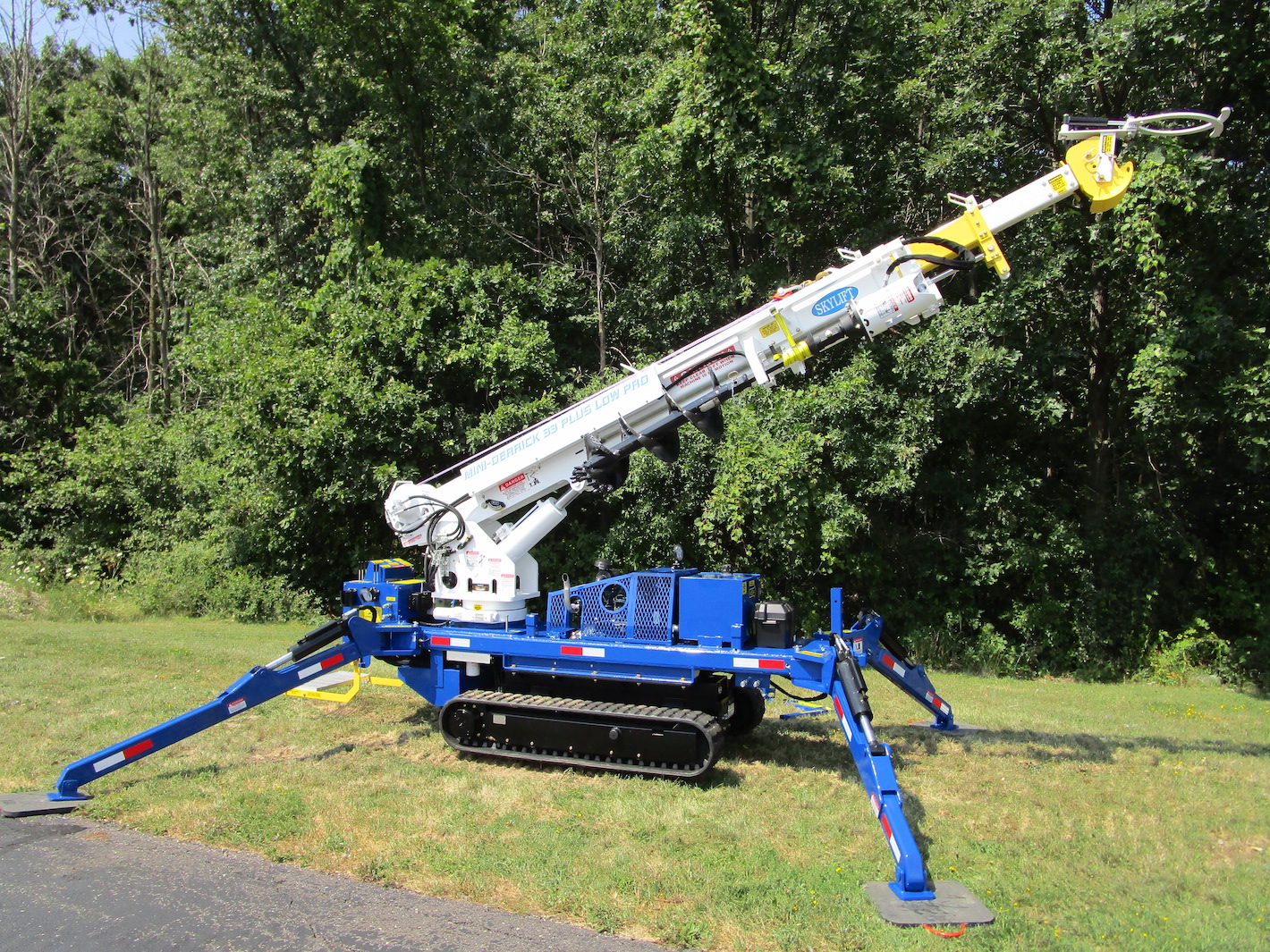

MD 4000 Plus Low Pro Track Driven Side
MD 4000 Plus Low Pro Track Driven

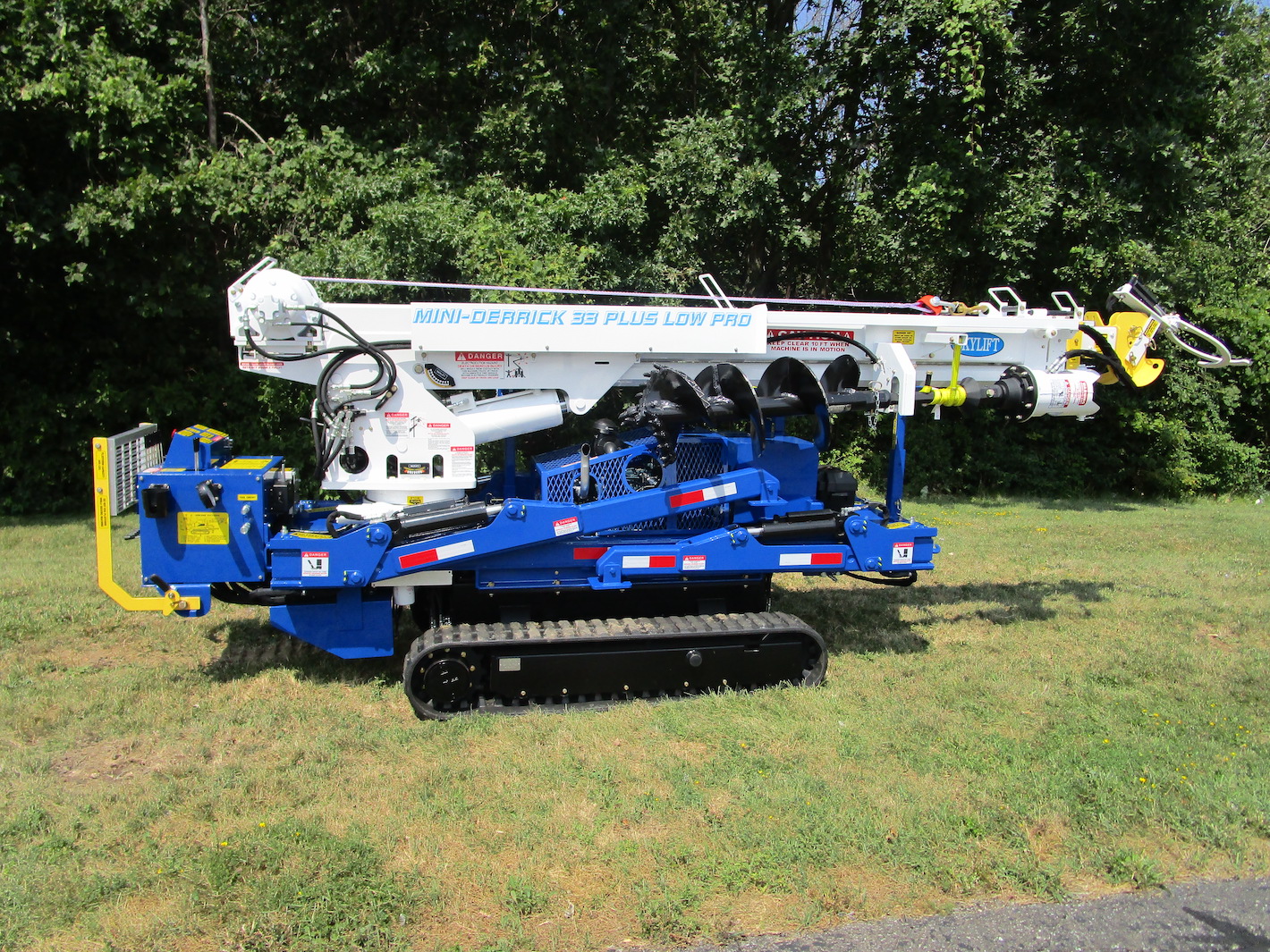

MD 4000 Digger Derrick

What is the MD 4000?

Have a job that requires you to get through a standard 36" gate but don’t need all the accessories, size and power of the Super 6000? Do you want a machine that can be wheel-driven or track-driven?  Well, the Mini-Derrick 4000 is the machine for you. The MD 4000 boasts a 4,000 lb lifting capacity while having a smaller frame than the Super 6000.  It also features a pad mount transformer carrier that can be removed when not in use. If you need a tracked backyard digger derrick to be versatile while still capable of getting the job done then the Mini-Derrick 4000 is the machine for you.

REQUEST A QUOTE

MD 4000 Specifications

  • Weight: 9,000 lbs.
  • Length: Chassis 12' Overall 17'9"
  • Height: 6'3"
  • Working Height: 39' to 42'
  • Width: 35" Closed – 50" Open
  • Base: High-Strength Steel Construction
  • Engine: 23 HP Kubota Diesel Tier 4 Compliant
  • Fuel Capacity: 10 Gallons
  • Winch: 4,000 lbs.
  • Auger Drive: 3,300 ft. lbs. of Torque
  • Digging Radius: MIN: 11' 8" / MAX 20' 9"
